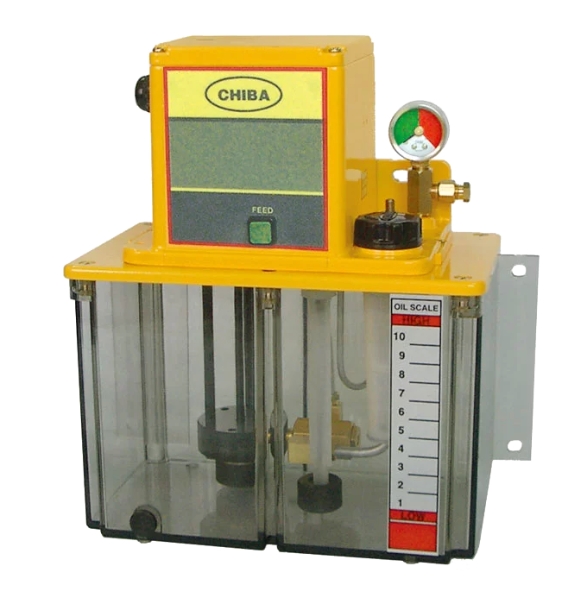

TM Resistant-type Lubricant Pump
Function & Features:
- May issue the instruction or by the pump computer hypothesis intermittence and the lubrication time by PLC.
- The pump picks the high-speed operation, the pressure current capacity stable, can be effective transports the oil to each lubricant point.
- Is equipped with the oil level to examine the knowledge, can at the right moment detect the oil mass and the unusual warning.
- The pump is equipped with the pressure setting and the installment.
Specification:
Model |
Outlet |
Valtage |
Float switch |
Pressure release unit |
Pressure applied |
Release time |
Running time |
TM-301F |
0.3/0.36 L/ min |
110V |
O |
X |
1-15 kgf/cm2 |
PLC |
PLC |
TM-302F |
220V |
O |
X |
TM-301CF |
110V |
O |
X |
1-99 min |
1-99 min |
TM-302CF |
220V |
O |
X |

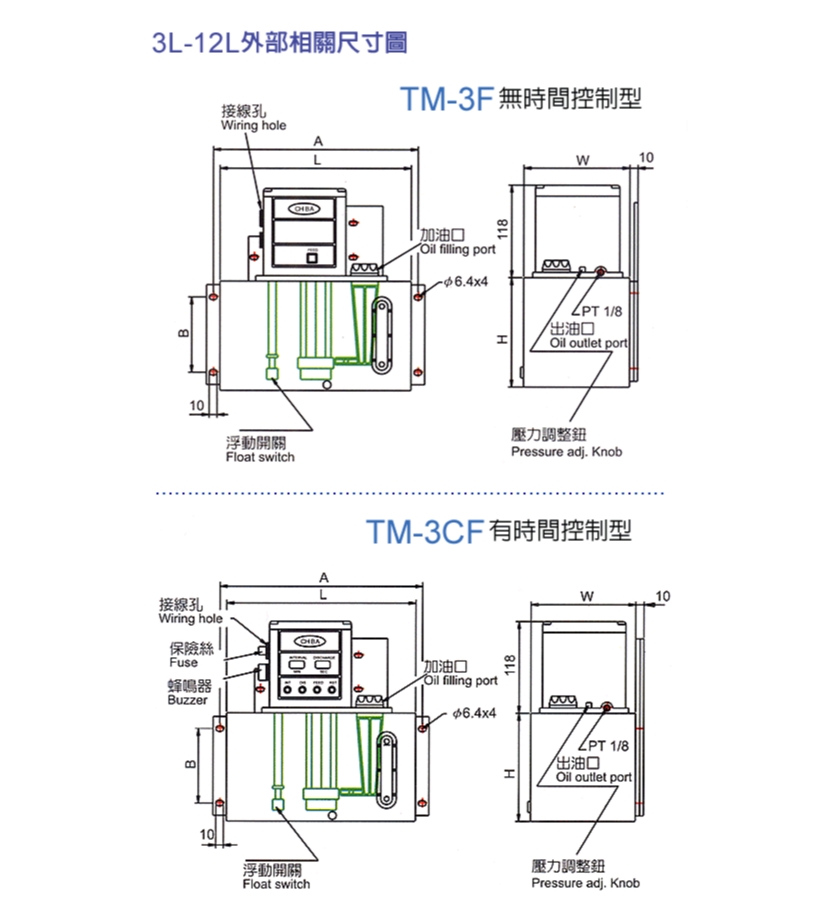

3L~12LOutside Specification:
Model |
AxB (mm) |
L |
W |
H |
Tank Capacity |
T-3L |
200×95 |
180 |
130 |
150 |
3.10L |
T-4L |
240×110 |
210 |
130 |
150 |
4.09L |
T-6L |
320×110 |
280 |
145 |
150 |
6.09L |
T-8L |
340×110 |
300 |
180 |
150 |
8.10L |
T-10L |
370×110 |
320 |
180 |
150 |
10.10L |
T-12L |
390×110 |
350 |
230 |
150 |
12.07L |
